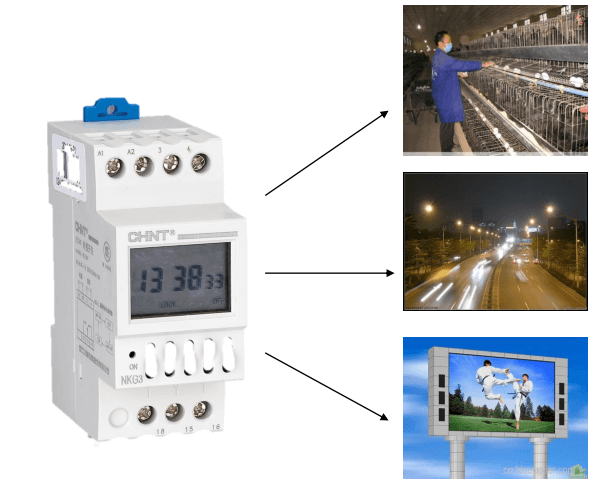

Application domains
![](https://www.shreenathtechnolab.com/wp-content/uploads/2023/02/nkg-3.1.png)
Technical data:
- Rated control supply voltage 220/230 VAC /50/60Hz
- Usage category of auxiliary circuit AC-15
- Rated operational current( Ie) 220V/0.75A 380V/0.47A
- Time control range 1s~168h
- Mechanical life 30 thousand times
- Electrical life 10 thousand times

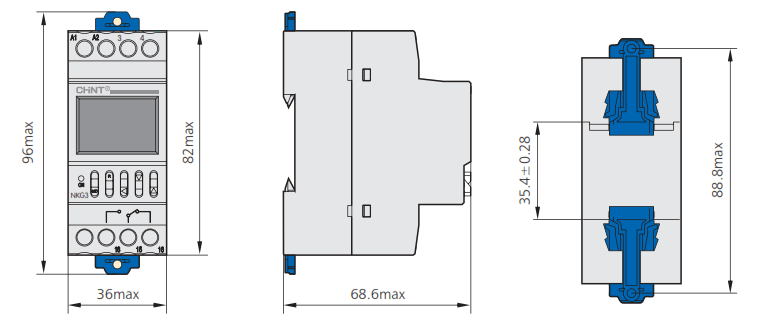

Dimensions
Profile and Installation Dimension
![](https://www.shreenathtechnolab.com/wp-content/uploads/2023/02/nkg-3-dim-ful.png)
Connection Mode
![](https://www.shreenathtechnolab.com/wp-content/uploads/2023/02/fig-1.png)
![](https://www.shreenathtechnolab.com/wp-content/uploads/2023/02/fig-2.png)
![](https://www.shreenathtechnolab.com/wp-content/uploads/2023/02/fig-4.png)
![](https://www.shreenathtechnolab.com/wp-content/uploads/2023/02/fig-5.png)
